F760-0802

F760-0802


For testing the Fakra Female Connector
- Upto 6GHz
- Fast connection with MCX Plug interface.

U.S.＄ 200.00
150.00
Quantity：
Consultation

Product Description


For testing the Fakra Female Connector
- Upto 6GHz
- Fast connection with MCX Plug interface.


Mechanical& Electronical

Voltage Rating250Vrms Max.
FrequencyDC-6GHz
Impedance50 OhmΩ
Insulation Resistance1000 MOhm
V. S. W. R.1.5(DC-6GHz)
Withstanding Voltage AC 250V
Insertion Loss 2dB
Outer Ground Full/ Working Travel 5.0mm[0.197inch]/3.7mm[0.145inch]
Inner Pin Full/ Working Travel 3.7mm[0.145inch]/2.0mm[0.078inch]
Spring Force2N Inner Pin, 4N Ground Shield
Operated Temperature-40~125°C
Lifespan

10000 cycles



Material& Treatment

Plunger BeCu / Au Plated
Spring Music Wire/ Au Plated
Tube Bronze/ Au Plated



Optional Receptacles

 R860-02

RF PROBE RECEPTACLE




SK4/ Au Plated


Optional Cable Assembly

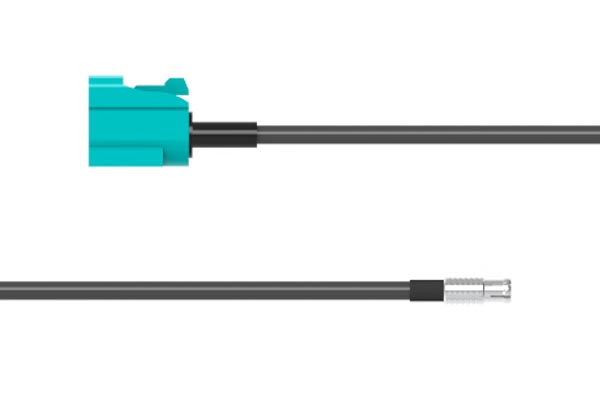

 SE178-XMFKF-1M

-MCX connector to Fakra Female 1-meter-long cable assembly

-Optional length 30cm/ 50cm/ 80cm/ 1m/ 2m



MCX TO FAKRA CABLE




SK4/ Au Plated

CAD Download

3D Download
