RF Pogo Pin for 12GHz High-Speed Fakra Mini FEMale Plug/ Connector

MINI-COAX-fakra-test-pogo-pin

Test Probe Block

Coaxial Test Probe

F807-0702

High-Speed-Fakra-mini-Probe

High Speed Fraka Mini Male Plug​

RF Pogo Pin for 12GHz High-Speed Fakra Mini Male Plug/ Connector

F807-0702   12GHz High-Speed Fakra Mini Coaxial Test Probe for male
Specifications
Impedance50Ω
Frequency DC to 12GHz
V.S.W.R.1.5max( DC to 12GHz)
Insertion Loss2.0dB( DC to 12GHz)
Inner Pin Max Travel/ Working Travel 1.0mm[0.039inch]/1.5mm[0.059inch]
Outer Ground Max Travel/ Working Travel4.1mm[0.161inch]/3.2mm[0.126inch]
Spring Force1N Inner Pin, 5.8N Ground Shield
Lifespan

10K cycles Test side

500 cycles MCX side

Materials
PlungerBeryllium Copper/ Au Plated
SpringMusic Wire/ Au Plated
TubeBronze/ Au Plated
InsulatorPTFE
MINI-COAX-fakra-test-pogo-pin-female
F808-0802   12GHz High-Speed Fakra Mini Coaxial Test Probe for female
Specifications
Impedance50Ω
Frequency DC to 12GHz
V.S.W.R.1.5max( DC to 12GHz)
Insertion Loss2.0dB( DC to 12GHz)
Inner Pin Max Travel/ Working Travel 1.0mm[0.039inch]/1.5mm[0.059inch]
Outer Ground Max Travel/ Working Travel4.1mm[0.161inch]/3.2mm[0.126inch]
Spring Force1N Inner Pin, 5.8N Ground Shield
Lifespan

10K cycles Test side

500 cycles MCX side

Materials
PlungerBeryllium Copper/ Au Plated
SpringMusic Wire/ Au Plated
TubeBronze/ Au Plated
InsulatorPTFE

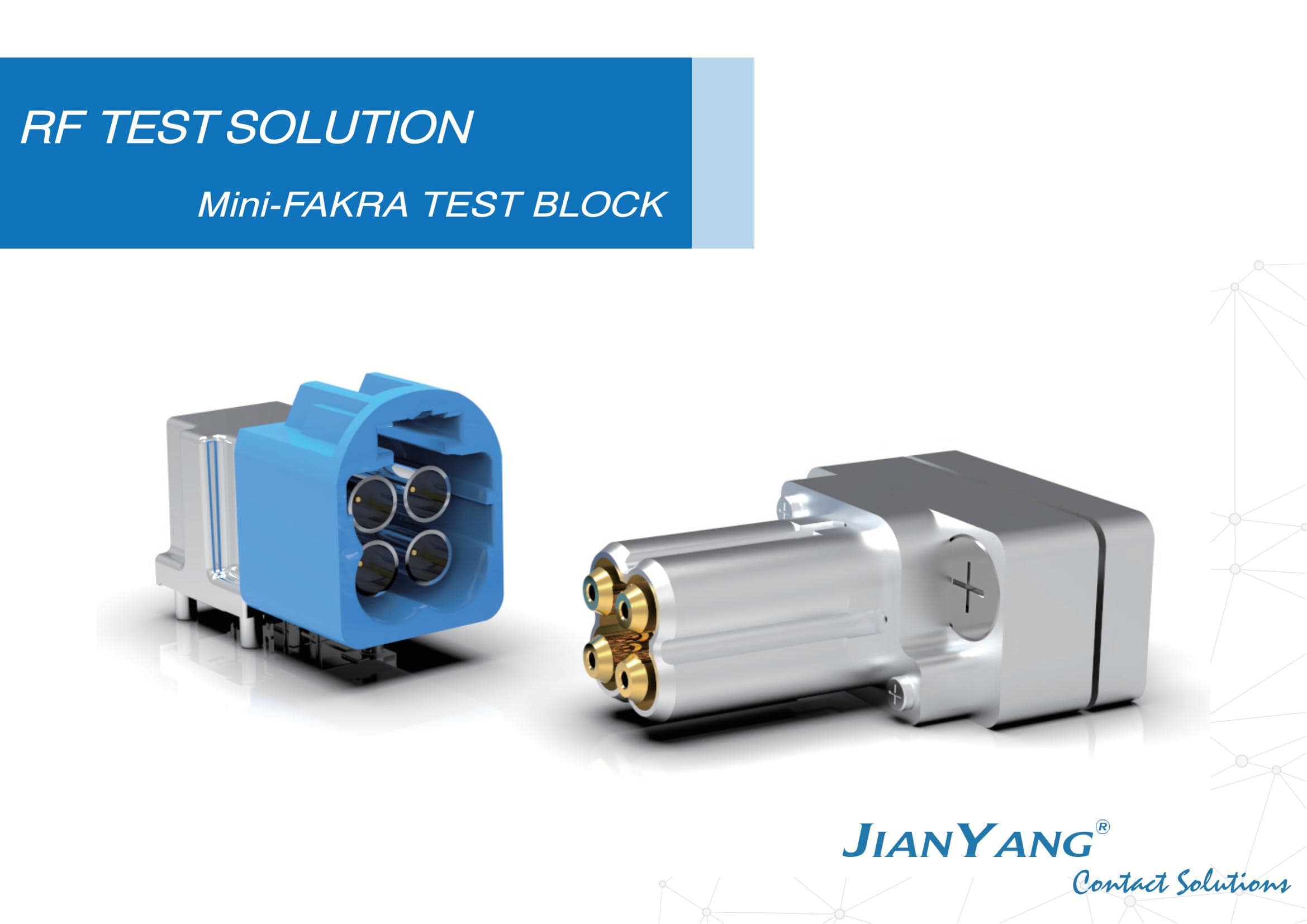

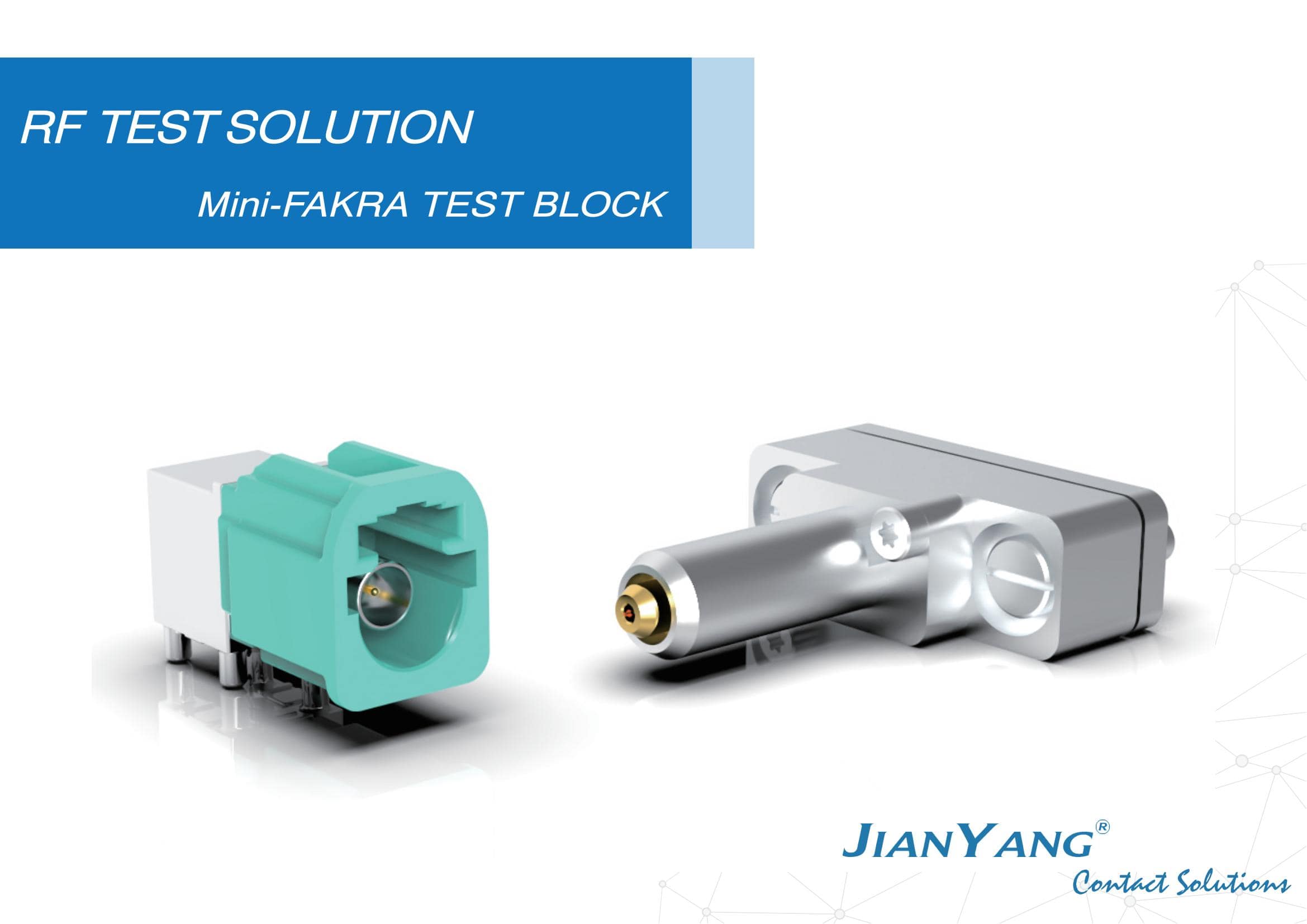

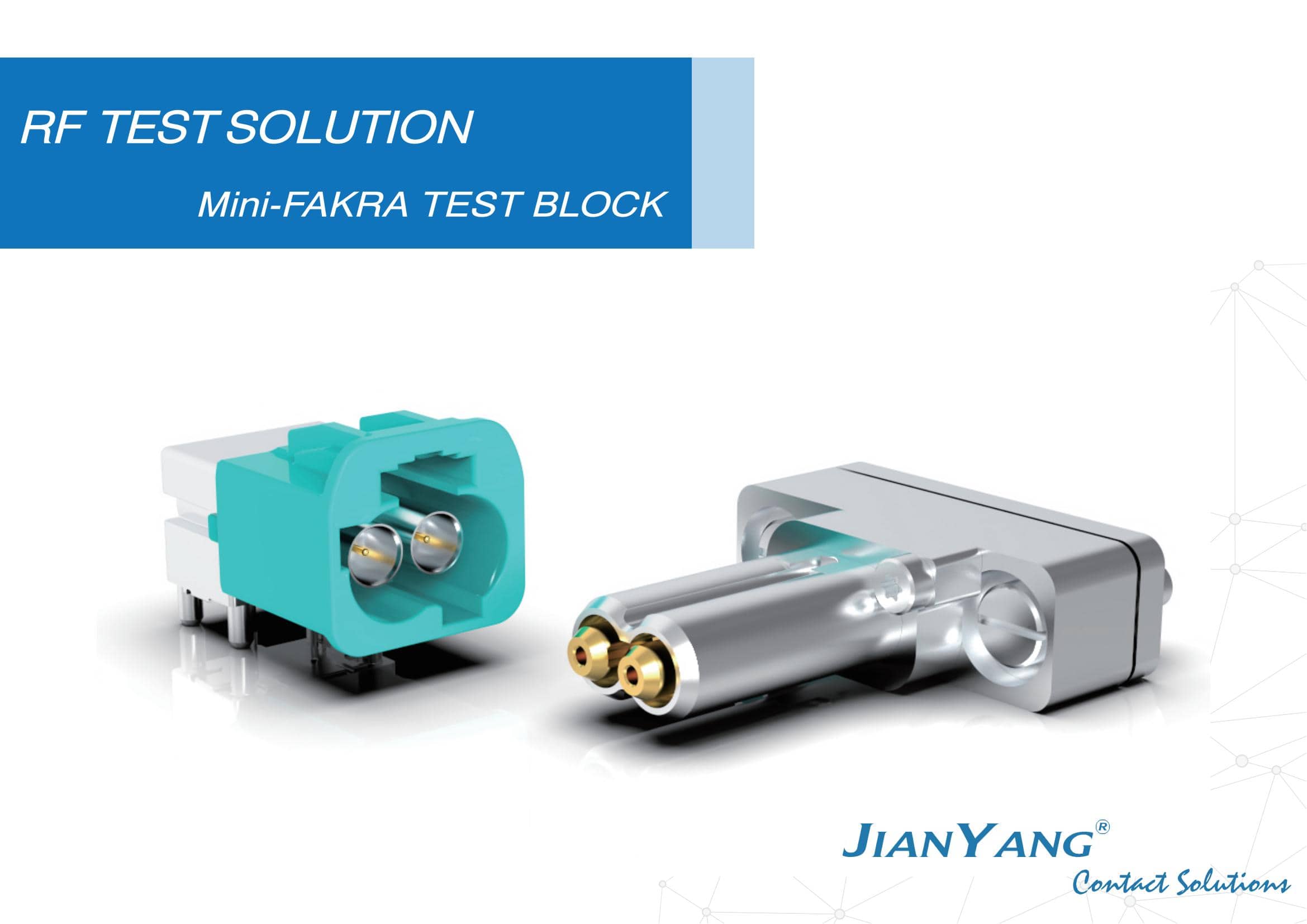

4 Coaxial Test Probes Block Contact Solution On High Speed Fakra Mini Male Plug/ Connector

Mini Fakra, namelly called high-speed fakra mini is one kind of mini-coax connector designed by harness manufactuers, which can pass  over up to 28Gpbs high speed data, even the high frequency over to 20GHz. normally they are mounted on the PCB of automobile production lines.

We designed a kind of coaxial test probe for this high speed coaxial connector to help customers saving time and cost. As we know, it will take a lot of time to test the mini fakra with the mated female mini fakra cable assemblies with a short life.



Features

  • Brand:JYPROBE

  • High Frequency  DC to 12GHz.
  • Self-guarding design to mating High Speed Fakra Mini(HFM )Connectors Rosenberger.
  • Stable Signal Transmission
  • Very Low Insertion Loss and Return Loss
  • High Accuracy Contacting Ability
  • Long Lifespan
  • RoHS Compliant

Mini Fakra Coaxial Test Probe

High Speed Fakra Connectors

Mated Cable Assembly
