To protect high-performance and high-quality SMA female products, JYPROBE offers the RF probes to help customers test effectively and prevent product from damage.F850-0802 is an unexceptionable proposal to test SMA Female interconnection. As well F851-0702 is a protective rf contact probe for DUT SMA Male test.

RF Probes For DUT SMA Female Connectors

The probe satisfies the SMA Female of the outer ground signal contacts and blocks interference effectively. It prevents from leakaging of signals. Compared with the ordinary spiral twist test, F850-0802 radio frequency probe can effectively protect the SMA Female external thread from damaging, and we adopt the probe in the test fixture automatically that can reduces cost and saves time.

The F850-0802 RF probe can test DC-12GHz, and its V.W.S.R. is 1.5@DC-6GHz. The replaceable probe head can effectively contact the signal inner hole of SMA Female connector, and sufficient probe spring force ensures the effective contact and keep lower insertion loss. F850-0802 RF probe features a stable contact with MCX interface.

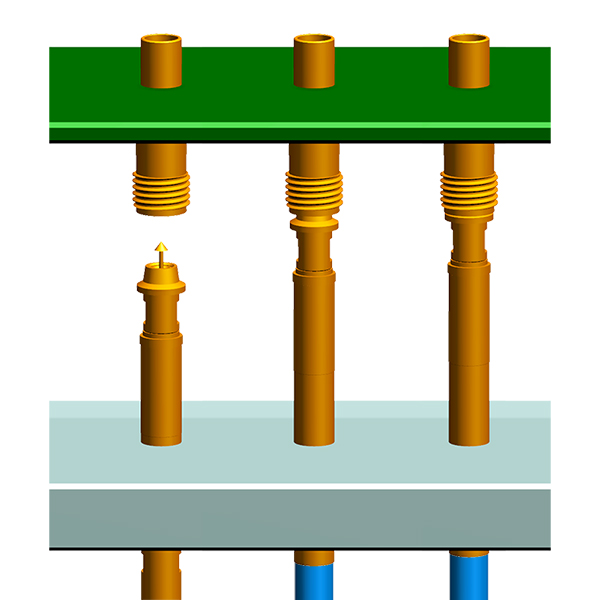

We have equipped with the corresponding receptacle R860-02 and mated RF cable SE178-AMXM-80CM to RF probe F850-0802.

F850-0802

FEATURES

Brand: JYPROBE
DC upto 12GHz
Match 50 Ohm Impedance
Mates To SMA Female Connector( DUT)
Self-guide Design
MCX Female Fast Contact Plug-in
High Reliability On Spring Contact
Automative Test Fixture Application On Production Line.
Protective Contact Test
Long Lifespan RF Probe

RF Probe for 6GHz

F850-0802

SMA Female

RF PROBES FOR DUT SMA CONNECTORS PROTECTIVE TEST

RF Coaxial Cable

SE178-AMXM-80CM

INQUIRY

DATASHEET

RF Probes For SMA Male Connectors

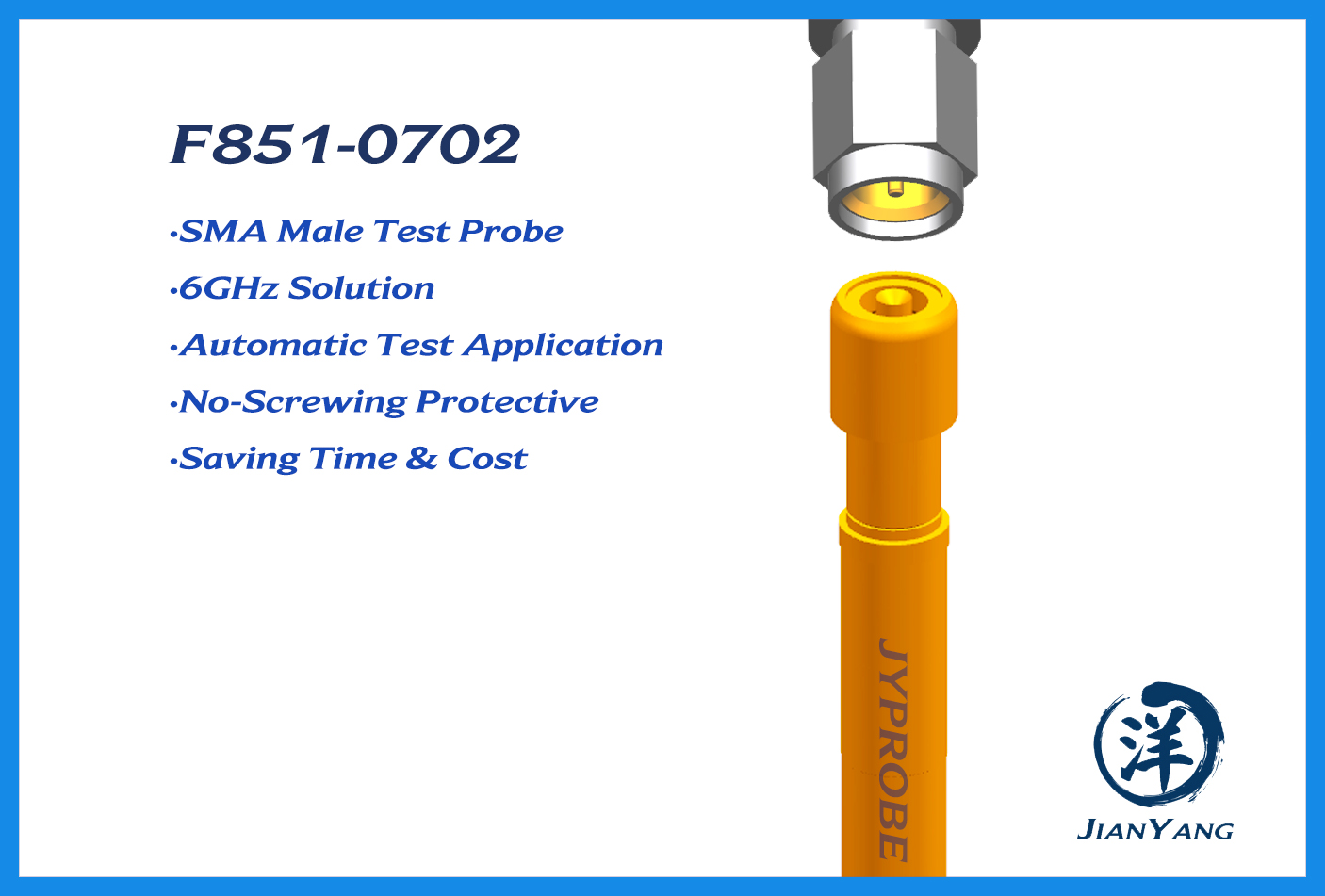

The F851-0702 RF probe can test DC-6GHz, and its V.W.S.R. is 1.5@DC-6GHz. The replaceable probe head can effectively contact the signal inner hole of SMA Female connector, and sufficient probe spring force ensures the effective contact and keep lower insertion loss. F851-0702 RF probe features a stable contact with MCX interface.

We have equipped with the corresponding receptacle R860-02 and mated RF cable SE178-AMXM-80CM to RF probe F851-0702.

F851-0702
