Y38115-1008-15

Y38115-1008-15

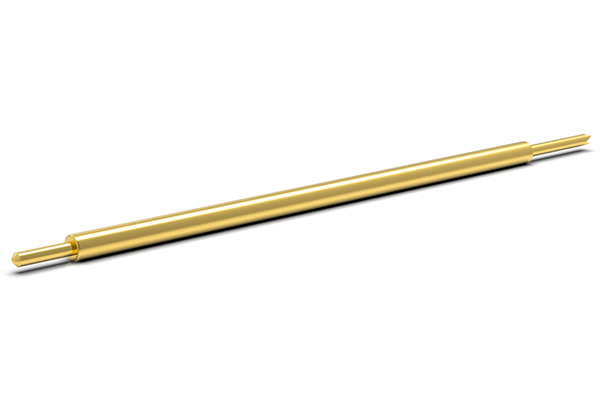

0.45mm Pitch Spring Contact Probe
- 15 grams
- 0.38mm Barrel Diameter
- Double Ended Probe Pin

￥ 0.00
0.00
Quantity：
Buy now
Add to cart

Product Description

0.45mm Pitch Spring Contact Probe
- 15 grams
- 0.38mm Barrel Diameter
- Double Ended Probe Pin


Mechanical& Electronical

Pitch 0.5mm[ 17.72mil]
Working Stroke

1.00mm[ 39.37mil]

Full Stroke 2.00mm[ 78.74mil]
Total Length

11.50mm[ 453.54mil]

Spring Force 0.15N[15g]
Resistance Max.300mOhm
Current 1Amp
Operated Temperature -55~120°C
Drilling Hole Size

0.42mm[16.54mil]



Material& Treatment

Plunger PD      BeCu / Au Plated
Spring SUS/ Au Plated
Tube Bronze/ Au Plated



Top Head, Crown

Bottom Head, Spear
pd alloy tipgold plated tip


CAD Download

3D Download
