Y3857-1008-030PD

Y3857-1008-030PD

0.45mm Pitch Spring Contact Probe
- 30 grams
- 0.38mm Barrel Diameter
- Double Ended Probe Pin

￥ 0.00
0.00
Quantity：
Buy now
Add to cart

Product Description

0.45mm Pitch Spring Contact Probe
- 30 grams
- 0.38mm Barrel Diameter
- Double Ended Probe Pin


Mechanical& Electronical

Pitch 0.45mm[ 17.72mil]
Working Stroke

0.65mm[ 25.59mil]

Full Stroke 1.10mm[ 43.31mil]
Total Length

5.70mm[ 224.41mil]

Spring Force 0.30N[30g]
Resistance Max.100mOhm
Current 0.5Amp
Operated Temperature -40~125°C
Drilling Hole Size

0.42mm[16.54mil]



Material& Treatment

Plunger PD      BeCu / Au Plated
Spring SUS/ Au Plated
Tube Bronze/ Au Plated

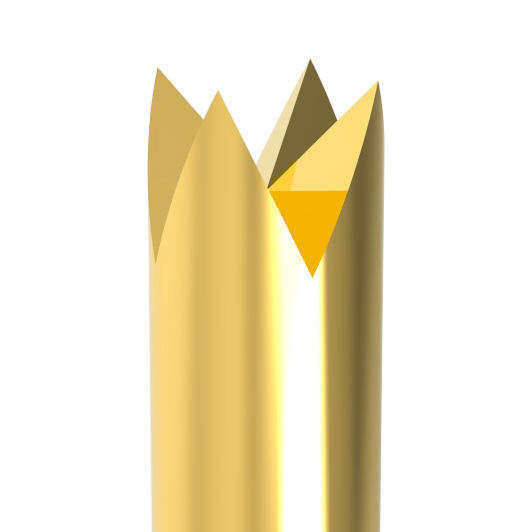

Top Head, CrownBottom Head, Spear
pd alloy tipgold plated tip


CAD Download

3D Download

Great Quality
RoHS Compliant
