  • JA050 50MIL Long Probe

  • JA050 50MIL Long Probe

    50mil Long probe

    100 pieces per package

    • U.S.＄135.00
      U.S.＄160.00
    • JA050 Probe：
    • Quantity：
Product Description

50mil Long probe

100 pieces per package

三面锥探针 直径1.5毫米

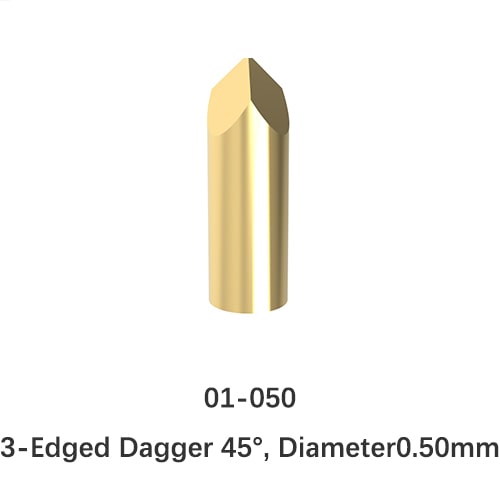

01-050

3-Edged Dagger 45°, Diameter0.50mm

三面锥针

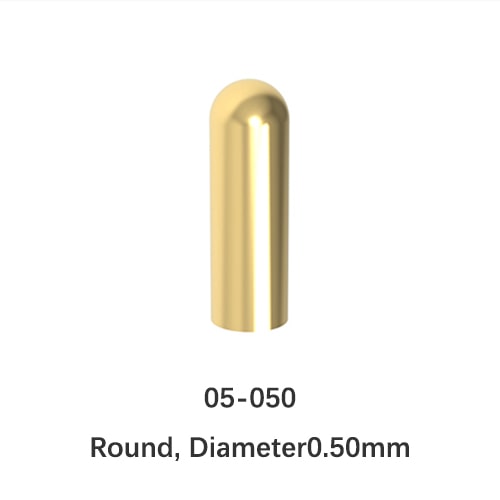

05-050

Round, Diameter0.50mm

01-090 45° 三面锥探头, 直径0.90毫米

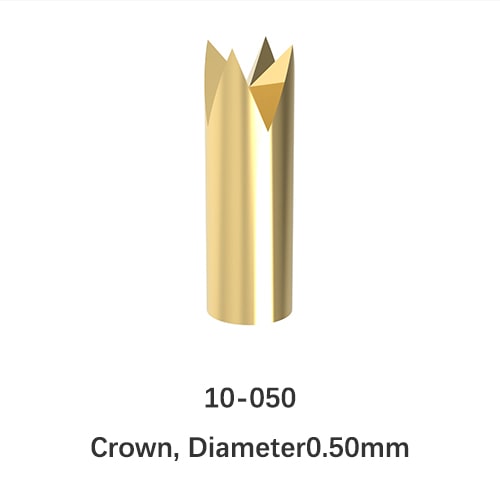

10-050

Crown, Diameter0.50mm

01-090 45° 三面锥探头, 直径0.90毫米

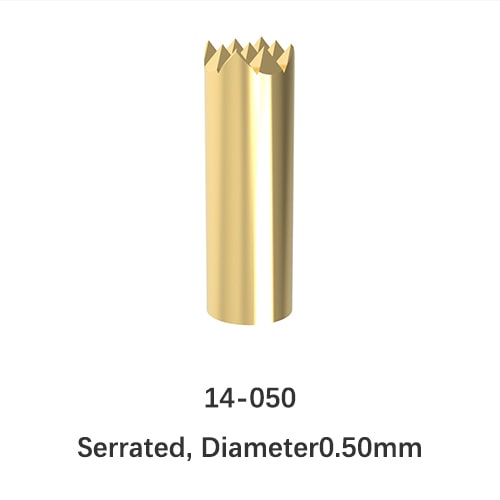

14-050

Serrated, Diameter0.50mm

01-090 45° 三面锥探头, 直径0.90毫米

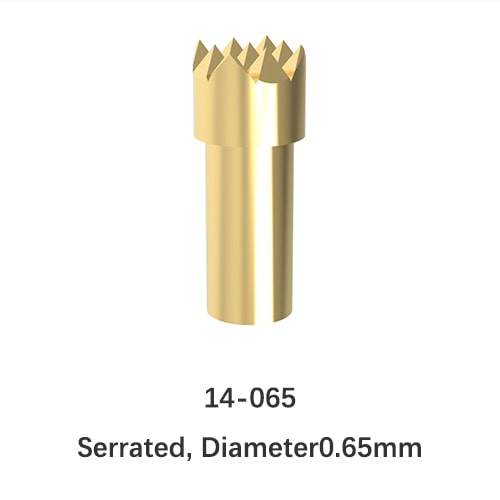

14-065

Serrated, Diameter0.65mm

01-090 45° 三面锥探头, 直径0.90毫米

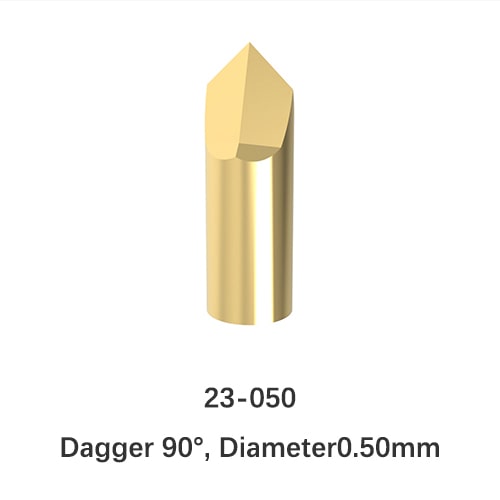

23-050

Dagger 90°, Diameter0.50mm




JA050 The probe's housing（See the casing instructions）


Soldering receptacle for OK wire P/N: R050-01No terminal or wire receptacle P/N: R050-02
Receptacle for 100mil probe
Receptacle riveting with wire P/N: R050-03Receptacle with square post or terminal P/N: R050-04
Wire receptalce for 100mil probeWireless Receptacle for 100mil probe




SK4/ Au Plated

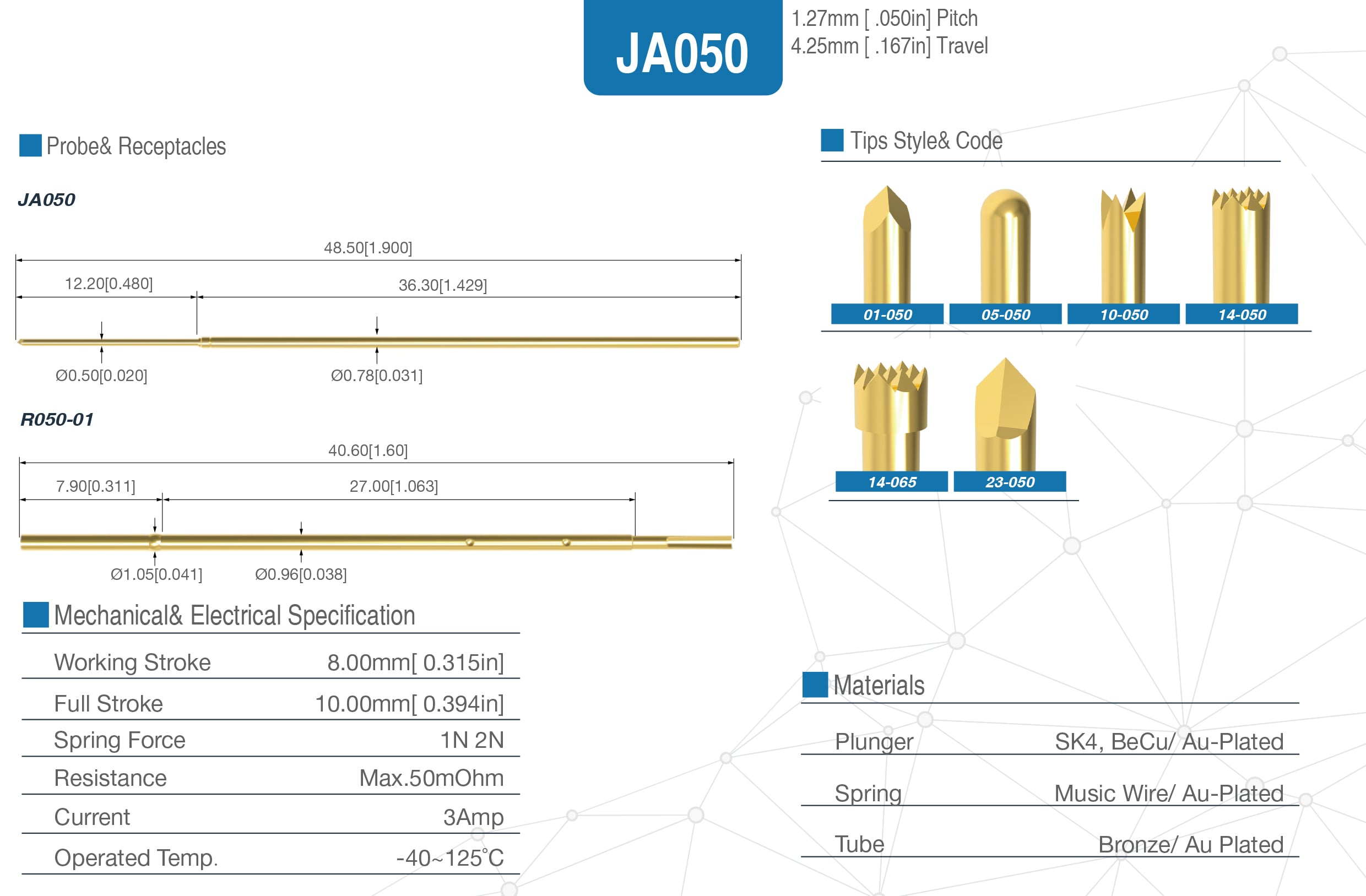

JA050 Probe Size

RoHS Compliant
