Testing PCB connectors requires a multi-layered approach to ensure signal integrity, mechanical durability, and electrical connectivity. Depending on whether you are testing high-density Board-to-Board (BTB) connectors or high-speed Mezzanine cards, the solution must balance precision with production throughput.
1. Electrical Performance Testing
The primary goal is to ensure that signals pass through the connector without distortion or excessive loss.
Continuity and Insulation Resistance: Standard ICT (In-Circuit Test) to check for opens, shorts, and leakage between pins.
Contact Resistance (LLCR): Low-Level Contact Resistance testing ensures the physical mating interface is stable. For high-reliability applications, resistance is typically measured in milliohms (Omega).
High-Voltage/Dielectric Withstanding: Ensures the insulation can handle voltage spikes without arcing.
2. Signal Integrity (SI) for High-Speed Connectors
For connectors handling high-speed protocols (like PCIe 6.0 or 800G Ethernet), DC testing is insufficient. You need frequency-domain analysis:
Insertion and Return Loss: Measuring S-parameters using a Vector Network Analyzer (VNA) to see how much signal is lost or reflected at frequencies up to 50GHz or 110GHz.
Crosstalk (NEXT/FEXT): Evaluating interference between adjacent pins, which is critical as pitches shrink below 0.5mm.
TDR (Time Domain Reflectometry): Used to identify impedance mismatches along the connector pins and the PCB transition zone (vias).
3. Mechanical and Environmental Reliability
Connectors are often the weakest mechanical link in a system. Testing must simulate the product's entire lifecycle.
Test Type | Description |
Mating/Unmating Force | Measures the effort required to connect/disconnect to ensure it meets ergonomic and safety standards. |
Durability (Cycling) | Repeated mating (e.g., 50 to 500 cycles) to check for plating wear or housing fatigue. |
Vibration & Shock | Ensures the connector stays locked under mechanical stress, often monitored with "discontinuity testing" (detecting nanosecond-scale breaks). |
Thermal Cycling | Testing the "coefficient of thermal expansion" (CTE) mismatch between the connector plastic and the PCB FR4. |
4. Hardware Interface Solutions
To interface the connector with test equipment, specialized hardware is required:

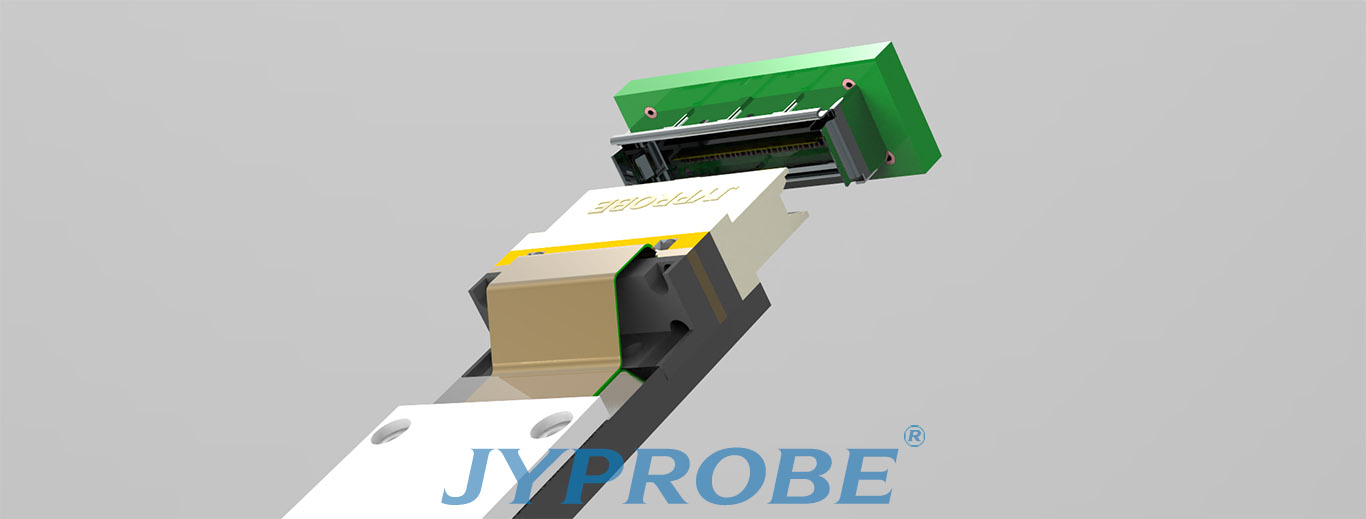

Test Sockets: High-performance sockets (often using pogo pins or conductive elastomers) allow for testing the connector without soldering it to a board.
Pogo Pin Probes: For high-density BTB connectors, fine-pitch pogo pins (down to 0.2mm pitch) are used to make temporary contact with the connector leads.
SI Test Boards: Custom-designed PCBs with optimized trace geometry to "break out" the connector signals to SMA or 2.4mm precision RF connectors.
5. Automated Optical Inspection (AOI)
Before electrical testing, 3D AOI is used to verify:
Co-planarity: Ensuring all pins are at the same height to prevent "cold" solder joints.
True Position: Verifying the X-Y alignment of pins relative to the plastic housing.
Solder Bridge Detection: Identifying shorts before power is applied.
